magnetic brake motors & gear motors

clutch brake motors & gear motors

output 40w-90w

output 40w-90w

  • suitable for highly frequent start/stop operation
    high precision and responsive clutch and brake are most suitable for frequent start/stop applications.
  • ​precise positioning
    when the brake is in use, the clutch will separate the link from the brake, so there are no overruns, making positioning precise and accurate.
  • simple design
    adapting compact and space-saving design, making it easy to operate and looking elegant.

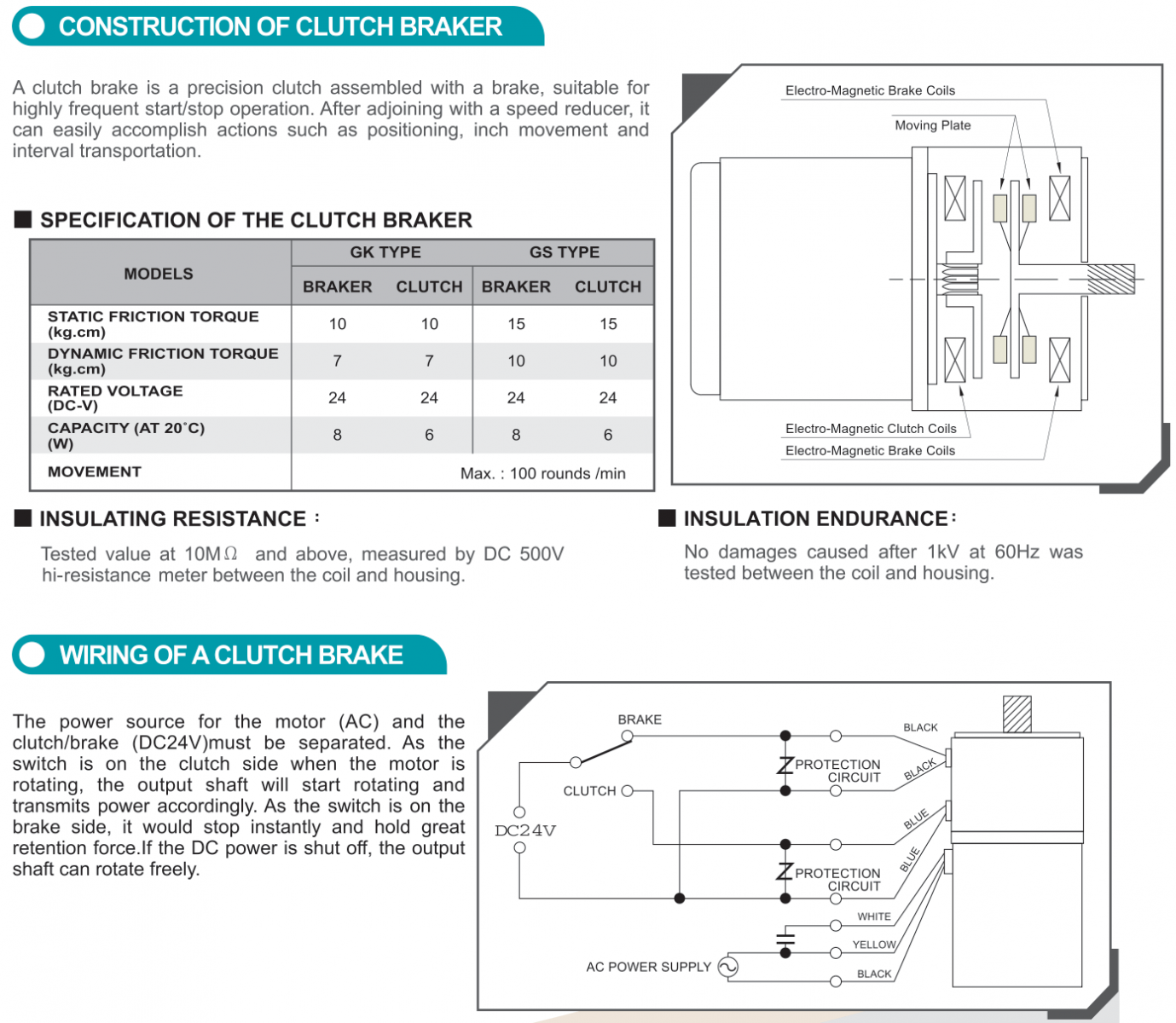

notes:
  1. the motor using the clutch brake will produce a large moment of inertia due to the stopping frequency and interval time. when a gearhead (speed reducer) is required, please calculate and inform us the feedback moment of inertia on your own machine to provide suitable gearhead (speed reducer). instant start and stop will generate large current and cause the motor temperature to rise rapidly, the start-stop frequency should not exceed 20 times/min.
  2. the gk clutch brake motors have gn pinion output shaft. the gs clutch brake motors have gx pinion output shaft.

induction clutch brake motors & gear motors specifications

40w uni-direction type
model output
(w)
voltage
(v)
freq.
(hz)
pole
(p)
rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
motor clutch brake
5ik40gk-a mbc90gn-dc24v 40 1ø 100/110 50/60 4 1250/1600 continuous 2.14/2.66 3.17/2.41 0.87/0.76 10/300v
5ik40gk-c mbc90gn-dc24v 40 1ø 200/220 50/60 4 1300/1650 continuous 1.75/2.17 3.01/2.35 0.4/0.34 2.5/450v
5ik40gk-ce mbc90gn-dc24v 40 1ø 230/240 50 4 1350/1350 continuous 2.3/2.58 2.87/2.84 0.32/0.32 2.5/450v
5ik40gk-s mbc90gn-dc24v 40 3ø 220 60 4 1400/1600 continuous 10.51/7.83 2.83/2.4 0.32/0.28 -
5ik40gk-u mbc90gn-dc24v 40 3ø 380 60 4 1350/1600 continuous 9.25/ 6.68 2.85/2.45 0.16/0.15 -
5ik40gk - 40w dim. (pdf)  (dwg)  (step)
mbc90gn - clutch brake dim. (pdf)  (dwg)  (step)
gearhead 5gn□ke, □ = ratio 3-180

60w uni-direction type
model output
(w)
voltage
(v)
freq.
(hz)
pole
(p)
rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
rated troque
(kg.cm)
rated current
(a)
capacitor
(μf)
motor clutch brake
5ik60gs-af mbc90gx-dc24v 60 1ø 100/110 50/60 4 1200/1650 continuous 2.6/2.94 5.0/3.5 1.8/1.12 16/300v
5ik60gs-cf mbc90gx-dc24v 60 1ø 200/220 50/60 4 1250/1600 continuous 3.62/4.41 4.64/3.63 0.64/0.54 4/450v
5ik60gs-cef mbc90gx-dc24v 60 1ø 230/240 50 4 1300/1350 continuous 4.14/5.22 4.56/4.4 0.56/0.55 4/450v
5ik60gs-sf mbc90gx-dc24v 60 3ø 220 60 4 1300/1550 continuous 13.72/10.70 4.47/3.77 0.41/0.39 -
5ik60gs-uf mbc90gx-dc24v 60 3ø 380 60 4 1400/1550 continuous 14.33/10.15 4.2/3.79 0.21/0.22 -
5ik60gs - 60w dim. (pdf)  (dwg)  (step)
​mbc90gx - clutch brake dim. (pdf)  (dwg)  (step)
gearhead 5gx□k, 5gx□kb, □ = ratio 3-200

90w uni-direction type
model output
(w)
voltage
(v)
freq.
(hz)
pole
(p)
rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
motor clutch brake
5ik90gs-af mbc90gx-dc24v 90 1ø 100/110 50/60 4 1300/1650 continuous 4.76/5.86 6.68/5.33 1.5/1.41 22/250v
5ik90gs-cf mbc90gx-dc24v 90 1ø 200/ 220 50/60 4 1300/1650 continuous 4.3/4.21 6.89/5.34 0.76/0.72 5/450v
5ik90gs-cef mbc90gx-dc24v 90 1ø 230/240 50 4 1350/1350 continuous 4.93/5.08 6.44/6.42 0.66/0.68 5/450v
5ik90gs-sf mbc90gx-dc24v 90 3ø 220 60 4 1400/1650 continuous 23.3/18.25 6.4/5.3 0.7/0.6 -
5ik90gs-uf mbc90gx-dc24v 90 3ø 380 60 4 1400/1650 continuous 23.3/18.14 6.27/5.23 0.4/0.3 -
5ik90gs - 90w dim. (pdf)  (dwg)  (step)
​mbc90gx - clutch brake dim. (pdf)  (dwg)  (step)
gearhead 5gx□k, 5gx□kb, □ = ratio 3-200

40w variable speed type
model output
(w)
voltage
(v)
freq.
(hz)
pole
(p)
current
(a)
variable
speed range
(rpm)
starting torque
(kg.cm)
max. torque (kg.cm) capacitor
(μf)
motor clutch brake 1200rpm 90rpm
5ik40rgk-a mbc90gn-dc24v 40 100/110 50/60 4 0.87/0.76 90~1400/90~1700 2.14/2.66 3.18/4.2 2.2/2.8 10/300v
5ik40rgk-c mbc90gn-dc24v 40 200/220 50/60 4 0.4/0.34 90~1400/90~1700 1.75/2.17 3.6/4.2 1.8/2.1 2.5/450v
5ik40rgk-ce mbc90gn-dc24v 40 230/240 50 4 0.32/0.32 90~1400 2.3/2.58 4.4/4.6 2.4/2.6 2.5/450v
5ik40rgk - 40w dim. (pdf)  (dwg)  (step)
mbc90gn - clutch brake dim. (pdf)  (dwg)  (step)
gearhead 5gn□ke, □ = ratio 3-180

60w variable speed type
model output
(w)
voltage
(v)
freq.
(hz)
pole
(p)
current
(a)
variable
speed range
(rpm)
starting torque
(kg.cm)
max. torque (kg.cm) capacitor
(μf)
motor clutch brake 1200rpm 90rpm
5ik60rgk-af mbc90gn-dc24v 60 100/110 50/60 4 1.8/1.12 90~1400/90~1700 2.6/2.94 5.6/6.9 3.5/4.0 16/300v
5ik60rgk-cf mbc90gn-dc24v 60 200/220 50/60 4 0.64/0.54 90~1400/90~1700 3.62/4.41 5.9/6.9 4.6/4.4 4/450v
5ik60rgk-cef mbc90gn-dc24v 60 230/240 50 4 0.56/0.55 90~1400 4.14/5.22 7.2 5.2 4/450v
5ik60rgk - 60w dim. (pdf)  (dwg)  (step)
​mbc90gn - clutch brake dim. (pdf)  (dwg)  (step)
gearhead 5gn□ke, □ = ratio 3-180

90w variable speed type
model output
(w)
voltage
(v)
freq.
(hz)
pole
(p)
current
(a)
variable
speed range
(rpm)
starting torque
(kg.cm)
max. torque (kg.cm) capacitor
(μf)
motor clutch brake 1200rpm 90rpm
5ik90rgs-af mbc90gx-dc24v 90 100/110 50/60 4 1.5/1.41 90~1400/90~1700 4.76/5.86 8.4/10.2 5/6.1 22/300v
5ik90rgs-cf mbc90gx-dc24v 90 200/220 50/60 4 0.76/0.72 90~1400/90~1700 4.3/4.21 8/8.7 4.4/4.4 5/450v
5ik90rgs-cef mbc90gx-dc24v 90 230/240 50 4 0.66/0.68 90~1400 4.93/5.08 9.8/10.2 5.2/5.6 5/450v
5ik90rgs - 90w dim. (pdf)  (dwg)  (step)
​mbc90gx - clutch brake dim. (pdf)  (dwg)  (step)
gearhead 5gx□k, 5gx□kb, □ = ratio 3-200
