magnetbremsenmotoren & getriebemotoren
bremsmotoren & getriebemotoren
leitungsdraht vom typ 6 w bis 40 w
- hohe brems- & haltekraft
die eingebaute bremse stoppt sofort den motor, wenn der strom ausgeschaltet wird, und hält die last zuverlässig fest.
- sofortige abbremsung
ungeachtet der umdrehungen pro minute kann die magnetbremse die umläufe innerhalb von 2 bis 3 umdrehungen steuern. dies ist ein idealer motor für anwendungen, bei denen häufig vorwärts/rückwärts ablaufende betriebsvorgänge anfallen (grenze der bremshäufigkeit: 10 mal pro minute).
- eine umfassende auswahl an modellen funktioniert mit reduktionsgetrieben (mit ritzelwelle, gn- oder gx-modell).
- regelbare optionen für wechselstromeingänge.
- ausgangsleistung von 6 w bis 90 w.

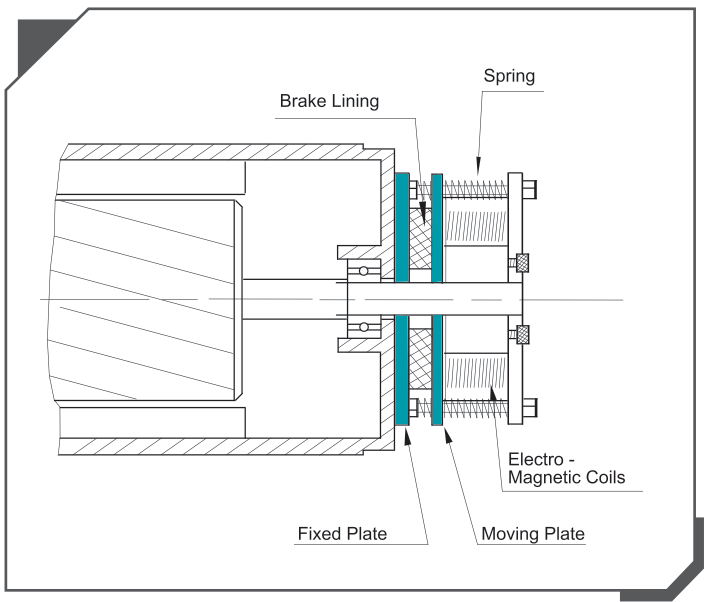

die ideale voreinstellung des lüftspiels der bremse beträgt 0,15 mm (ungefähr die dicke einer visitenkarte). nach einiger nutzungszeit erweitert sich das lüftspiel aufgrund von belagreibung und abnutzung. hat das lüftspiel einen abstand von 0,3 mm überschritten, kontaktieren sie uns bitte oder ersetzen sie den belag.
electro magnetic brake motors & gear motors specifications
output 6w (1/125 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2ik6a-am | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | 30 | 0.7/0.63 | 0.51/0.41 | 0.22/0.21 | 2.5/300v |
| 2ik6a-cm | 6 | 1ø 200/ 220 | 50/60 | 4 | 1150/1550 | 30 | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v |
| 2ik6a-cem | 6 | 1ø 230/ 240 | 50 | 4 | 1100/1200 | 30 | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
output 6w (1/125 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2ik6gn-am | 2gn□ke | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | 30 | 0.7/0.63 | 0.51/0.41 | 0.22/0.21 | 2.5/300v |
| 2ik6gn-cm | 6 | 1ø 200/ 220 | 50/60 | 4 | 1150/1550 | 30 | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v | |
| 2ik6gn-cem | 6 | 1ø 230/ 240 | 50 | 4 | 1100/1200 | 30 | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
output 15w (1/50 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 3ik15a-am | 15 | 1ø 100/110 | 50/60 | 4 | 1150/1650 | 30 | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
| 3ik15a-cm | 15 | 1ø 200/ 220 | 50/60 | 4 | 1150/1600 | 30 | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v |
| 3ik15a-cem | 15 | 1ø 230/ 240 | 50 | 4 | 1300/1300 | 30 | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
output 15w (1/50 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 3ik15gn-am | 3gn□ke | 15 | 1ø 100/110 | 50/60 | 4 | 1150/1650 | 30 | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
| 3ik15gn-cm | 15 | 1ø 200/ 220 | 50/60 | 4 | 1150/1600 | 30 | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v | |
| 3ik15gn-cem | 15 | 1ø 230/ 240 | 50 | 4 | 1300/1300 | 30 | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
output 25w (1/30 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 4ik25a-am | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
| 4ik25a-cm | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v |
| 4ik25a-cem | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | 30 | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v |
| 4ik25a-sm | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - |
| 4ik25a-um | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | 30 | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
output 25w (1/30 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 4ik25gn-am | 4gn□ke | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
| 4ik25gn-cm | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v | |
| 4ik25gn-cem | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | 30 | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v | |
| 4ik25gn-sm | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - | |
| 4ik25gn-um | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | 30 | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
output 40w (1/19 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik40a-am | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
| 5ik40a-cm | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v |
| 5ik40a-cem | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v |
| 5ik40a-sm | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | 30 | 10.51/7.83 | 2.83/2.4 | 0.32/0.28 | - |
| 5ik40a-um | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | 30 | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
output 40w (1/19 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik40gn-am | 5gn□ke | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
| 5ik40gn-cm | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v | |
| 5ik40gn-cem | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v | |
| 5ik40gn-sm | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | 30 | 10.51/7.83 | 2.83/2.4 | 0.32/0.28 | - | |
| 5ik40gn-um | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | 30 | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
leitungsdraht vom typ 60 w bis 90 w
- hohe brems- & haltekraft
die eingebaute bremse stoppt sofort den motor, wenn der strom ausgeschaltet wird, und hält die last zuverlässig fest.
- sofortige abbremsung
ungeachtet der umdrehungen pro minute kann die magnetbremse die umläufe innerhalb von 2 bis 3 umdrehungen steuern. dies ist ein idealer motor für anwendungen, bei denen häufig vorwärts/rückwärts ablaufende betriebsvorgänge anfallen (grenze der bremshäufigkeit: 10 mal pro minute).
- eine umfassende auswahl an modellen funktioniert mit reduktionsgetrieben (mit ritzelwelle, gn- oder gx-modell).
- regelbare optionen für wechselstromeingänge.
- ausgangsleistung von 6 w bis 90 w.
die ideale voreinstellung des lüftspiels der bremse beträgt 0,15 mm (ungefähr die dicke einer visitenkarte). nach einiger nutzungszeit erweitert sich das lüftspiel aufgrund von belagreibung und abnutzung. hat das lüftspiel einen abstand von 0,3 mm überschritten, kontaktieren sie uns bitte oder ersetzen sie den belag.
electro magnetic brake motors & gear motors specifications
output 60w (1/12 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik60a-afm | 60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | 30 | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
| 5ik60a-cfm | 60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v |
| 5ik60a-cefm | 60 | 1ø 230/240 | 50 | 4 | 1300/1350 | 30 | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v |
| 5ik60a-sfm | 60 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - |
| 5ik60a-ufm | 60 | 3ø 380 | 50/60 | 4 | 1400/1550 | 30 | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
output 60w (1/12 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik60gn-afm 5ik60gx-afm |
5gn□ke 5gx□k 5gx□kb |
60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | 30 | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
| 5ik60gn-cfm 5ik60gx-cfm |
60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v | |
| 5ik60gn-cefm 5ik60gx-cefm |
60 | 1ø 230/240 | 50 | 4 | 1300/1350 | 30 | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v | |
| 5ik60gn-sfm 5ik60gx-sfm |
60 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - | |
| 5ik60gn-ufm 5ik60gx-ufm |
60 | 3ø 380 | 50/60 | 4 | 1400/1550 | 30 | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
output 90w (1/8 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik90a-afm | 90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | 30 | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
| 5ik90a-cfm | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v |
| 5ik90a-cefm | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v |
| 5ik90a-sfm | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | 30 | 23.3 18.25 | 6.4/5.3 | 0.7/0.6 | - |
| 5ik90a-ufm | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | 30 | 23.3/18.14 | 6.27/ 5.23 | 0.4/0.3 | - |
output 90w (1/8 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik90gx-afm | 5gx□k 5gx□kb |
90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | 30 | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
| 5ik90gx-cfm | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v | |
| 5ik90gx-cefm | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v | |
| 5ik90gx-sfm | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | 30 | 23.3 18.25 | 6.4/5.3 | 0.7/0.6 | - | |
| 5ik90gx-ufm | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | 30 | 23.3/18.14 | 6.27/ 5.23 | 0.4/0.3 | - |
klemmkastentyp 6w bis 40w
- hohe brems- & haltekraft
die eingebaute bremse stoppt sofort den motor, wenn der strom ausgeschaltet wird, und hält die last zuverlässig fest.
- sofortige abbremsung
ungeachtet der umdrehungen pro minute kann die magnetbremse die umläufe innerhalb von 2 bis 3 umdrehungen steuern. dies ist ein idealer motor für anwendungen, bei denen häufig vorwärts/rückwärts ablaufende betriebsvorgänge anfallen (grenze der bremshäufigkeit: 10 mal pro minute).
- eine umfassende auswahl an modellen funktioniert mit reduktionsgetrieben (mit ritzelwelle, gn- oder gx-modell).
- regelbare optionen für wechselstromeingänge.
- ausgangsleistung von 6 w bis 90 w.
die ideale voreinstellung des lüftspiels der bremse beträgt 0,15 mm (ungefähr die dicke einer visitenkarte). nach einiger nutzungszeit erweitert sich das lüftspiel aufgrund von belagreibung und abnutzung. hat das lüftspiel einen abstand von 0,3 mm überschritten, kontaktieren sie uns bitte oder ersetzen sie den belag.
electro magnetic brake motors & gear motors specifications
output 6w (1/125 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2ik6a-amt | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | 30 | 0.7/0.63 | 0.51/0.41 | 0.22/0.21 | 2.5/300v |
| 2ik6a-cmt | 6 | 1ø 200/ 220 | 50/60 | 4 | 1150/1550 | 30 | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v |
| 2ik6a-cemt | 6 | 1ø 230/ 240 | 50 | 4 | 1100/1200 | 30 | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
output 6w (1/125 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2ik6gn-amt | 2gn□ke | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | 30 | 0.7/0.63 | 0.51/0.41 | 0.22/0.21 | 2.5/300v |
| 2ik6gn-cmt | 6 | 1ø 200/ 220 | 50/60 | 4 | 1150/1550 | 30 | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v | |
| 2ik6gn-cemt | 6 | 1ø 230/ 240 | 50 | 4 | 1100/1200 | 30 | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
output 15w (1/50 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 3ik15a-amt | 15 | 1ø 100/110 | 50/60 | 4 | 1150/1650 | 30 | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
| 3ik15a-cmt | 15 | 1ø 200/ 220 | 50/60 | 4 | 1150/1600 | 30 | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v |
| 3ik15a-cemt | 15 | 1ø 230/ 240 | 50 | 4 | 1300/1300 | 30 | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
output 15w (1/50 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 3ik15gn-amt | 3gn□ke | 15 | 1ø 100/110 | 50/60 | 4 | 1150/1650 | 30 | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
| 3ik15gn-cmt | 15 | 1ø 200/ 220 | 50/60 | 4 | 1150/1600 | 30 | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v | |
| 3ik15gn-cemt | 15 | 1ø 230/ 240 | 50 | 4 | 1300/1300 | 30 | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
output 25w (1/30 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 4ik25a-amt | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
| 4ik25a-cmt | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v |
| 4ik25a-cemt | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | 30 | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v |
| 4ik25a-smt | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - |
| 4ik25a-umt | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | 30 | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
output 25w (1/30 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 4ik25gn-amt | 4gn□ke | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
| 4ik25gn-cmt | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v | |
| 4ik25gn-cemt | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | 30 | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v | |
| 4ik25gn-smt | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - | |
| 4ik25gn-umt | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | 30 | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
output 40w (1/19 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik40a-amt | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
| 5ik40a-cmt | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v |
| 5ik40a-cemt | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v |
| 5ik40a-smt | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | 30 | 10.51/7.83 | 2.83/2.4 | 0.32/0.28 | - |
| 5ik40a-umt | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | 30 | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
output 40w (1/19 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik40gn-amt | 5gn□ke | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | 30 | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
| 5ik40gn-cmt | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v | |
| 5ik40gn-cemt | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v | |
| 5ik40gn-smt | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | 30 | 10.51/7.83 | 2.83/2.4 | 0.32/0.28 | - | |
| 5ik40gn-umt | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | 30 | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
klemmkastentyp 60w bis 90w
- hohe brems- & haltekraft
die eingebaute bremse stoppt sofort den motor, wenn der strom ausgeschaltet wird, und hält die last zuverlässig fest.
- sofortige abbremsung
ungeachtet der umdrehungen pro minute kann die magnetbremse die umläufe innerhalb von 2 bis 3 umdrehungen steuern. dies ist ein idealer motor für anwendungen, bei denen häufig vorwärts/rückwärts ablaufende betriebsvorgänge anfallen (grenze der bremshäufigkeit: 10 mal pro minute).
- eine umfassende auswahl an modellen funktioniert mit reduktionsgetrieben (mit ritzelwelle, gn- oder gx-modell).
- regelbare optionen für wechselstromeingänge.
- ausgangsleistung von 6 w bis 90 w.
die ideale voreinstellung des lüftspiels der bremse beträgt 0,15 mm (ungefähr die dicke einer visitenkarte). nach einiger nutzungszeit erweitert sich das lüftspiel aufgrund von belagreibung und abnutzung. hat das lüftspiel einen abstand von 0,3 mm überschritten, kontaktieren sie uns bitte oder ersetzen sie den belag.
electro magnetic brake motors & gear motors specifications
output 60w (1/12 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik60a-afmt | 60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | 30 | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
| 5ik60a-cfmt | 60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v |
| 5ik60a-cefmt | 60 | 1ø 230/240 | 50 | 4 | 1300/1350 | 30 | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v |
| 5ik60a-sfmt | 60 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - |
| 5ik60a-ufmt | 60 | 3ø 380 | 50/60 | 4 | 1400/1550 | 30 | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
output 60w (1/12 hp), gear motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik60gn-afmt 5ik60gx-afmt |
60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | 30 | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
| 5ik60gn-cfmt 5ik60gx-cfmt |
60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | 30 | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v |
| 5ik60gn-cefmt 5ik60gx-cefmt |
60 | 1ø 230/240 | 50 | 4 | 1300/1350 | 30 | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v |
| 5ik60gn-sfmt 5ik60gx)-sfmt |
60 | 3ø 220 | 50/60 | 4 | 1300/1550 | 30 | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - |
| 5ik60gn-ufmt 5ik60gx-ufmt |
60 | 3ø 380 | 50/60 | 4 | 1400/1550 | 30 | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
output 90w (1/8 hp), motors
| model | output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik90a-afmt | 90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | 30 | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
| 5ik90a-cfmt | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v |
| 5ik90a-cefmt | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v |
| 5ik90a-sfmt | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | 30 | 23.3 18.25 | 6.4/5.3 | 0.7/0.6 | - |
| 5ik90a-ufmt | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | 30 | 23.3/18.14 | 6.27/ 5.23 | 0.4/0.3 | - |
output 90w (1/8 hp), gear motors
| model | gearhead model |
output (w) |
voltage (v) |
freq. (hz) |
pole (p) |
rated speed (rpm) |
rated time (min) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 5ik90gx-afmt | 5gx□k 5gx□kb |
90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | 30 | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
| 5ik90gx-cfmt | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | 30 | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v | |
| 5ik90g)-cefmt | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | 30 | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v | |
| 5ik90gx-sfmt | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | 30 | 23.3 18.25 | 6.4/5.3 | 0.7/0.6 | - | |
| 5ik90gx-ufmt | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | 30 | 23.3/18.14 | 6.27/ 5.23 | 0.4/0.3 | - |
